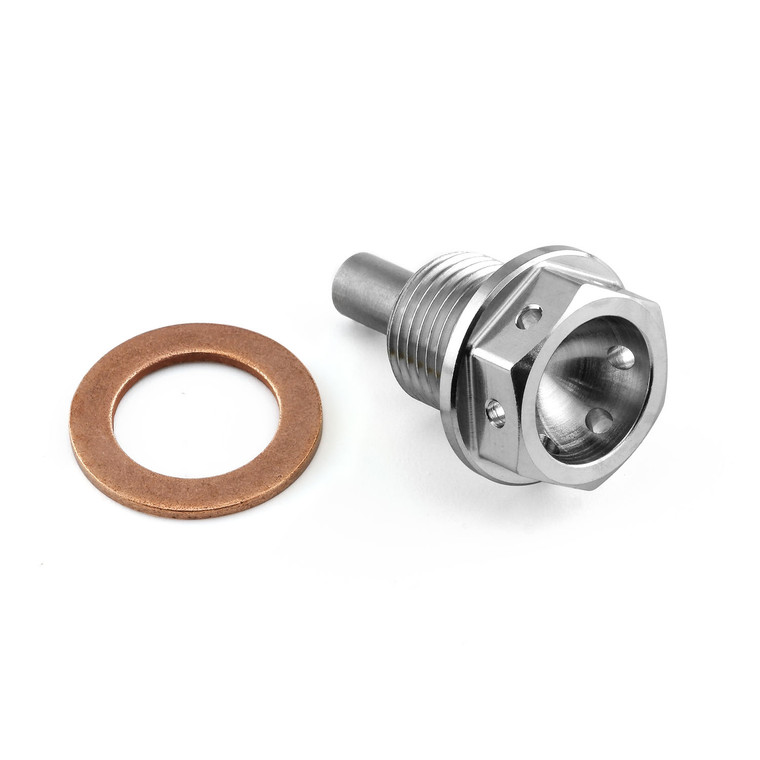

Titanium Sump Bolt Magnetic M14x(1.25mm)x12mm (TISUMP1412FMAG)
$18.92 - $25.32
Our Titanium Sump Bolts are made from aircraft grade titanium 6AL-4V (grade 5) and are suitable to replace both grade 5 and grade 8 steel bolts.
They can be fitted with a magnetic steel stud to attract foreign metal particles to help protect your engine. We also pre-drill the bolt heads on the flats for ease of lock wiring if required.
These beautiful highly polished bolts have the added advantages of being 40% Lighter than the original steel bolts and are corrosion resistant.
Weight:
No Magnet: 11.94g.
With Magnet: 16.09g.
- Material:
- Titanium Grade 5
- Product Type:
- Bolt
- Head Style:
- Special - Hex Head
- Thread Diameter:
- 14mm
- Thread Pitch:
- 1.25mm
- Thread Length:
- 12mm
- Head Height:
- 8mm
- Flange Diameter:
- 21mm
- Length:
- 12mm
- Socket Size:
- 17mm
- Pack Quantity:
- 1
